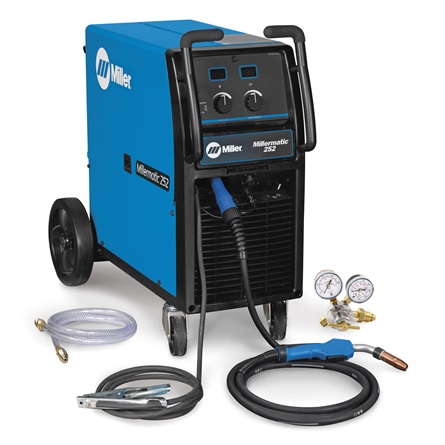

Welder, MIG - Millermatic 252

List of Known Consumables

Section titled “List of Known Consumables”

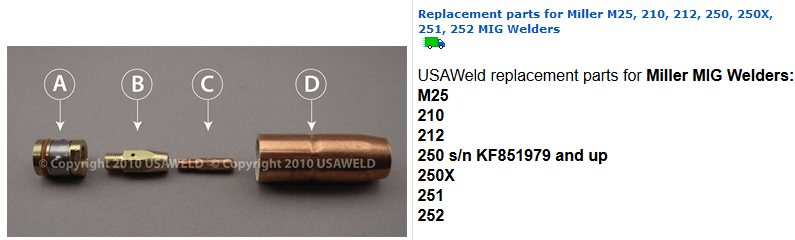

For reference, a photo of the Miller 252 MIG gun parts

Nozzle Adapter (A) Tip Adapter (B) Contact Tip (C) Gas Nozzle (D)
M169729 M169728

M087299 (0.023")
M000067 (0.030")
M000068 (0.035")*
M000069 (0.045")

 M169726

*DMS supplies 0.035 wire.

Name

Millermatic 252
Date Acquired

27 Jul 2015
Training

Training Required

Step 1: Online training required: https://learn.dallasmakerspace.org/course/view.php?id=30
Step 2: In person training required

Age requirements:
18+ (unless accompanied by a parent)
16+ with parent (some exceptions are made with chair approval)
Manufacturer

Miller
Description

-Mig Welder

-.035 Wire

-Capable of welding 1/2 steel in a single pass
Volunteers

John Nguyen, Jim Kreter, Max Holthaus, Randy Lisbona, Tim Bene, David Nelson
Section titled “Related Pages”

Manual: Millermatic_252-owners_manual.pdf
