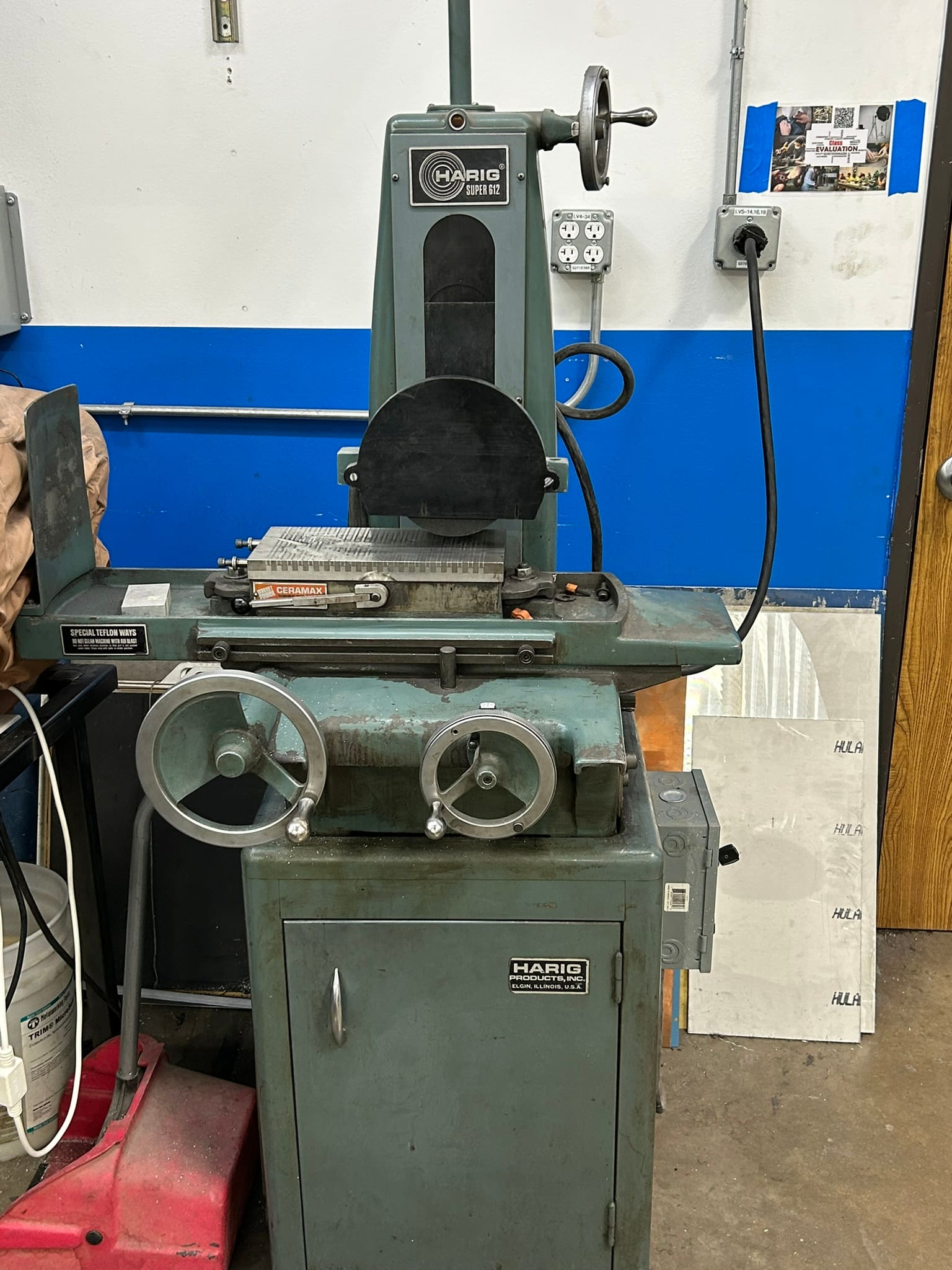

Hand Feed Surface Grinder, Harig Super 612

Name

Hand Feed Surface Grinder, Harig Super 612
Date Acquired


Training

Training Required
Manufacturer

Hariq
Description

Specifications:

   Chuck Size: 6″ x 12″
   Longitudinal Travel: 12 3/4″
   Cross Travel: 6 3/4″
   Grinding Wheel:
       8″ Max.
       Wheel Width: 1/2″
       Hole Size: 1 1/4″
   Max. Distance: 12″ (7″ Diameter Wheel)
Volunteers


Section titled “Related Pages”

Manual: Harig 612 and 618.pdf

Mechanical Specifications:


   Dimensions: 41″ x 38″ x 77″ H
   Weight: approx. 725 lbs.

Migrated from the DMS Confluence: original page
